Type 6013 2/2 Way Brass Plunger Solenoid Valve
Burkert type normally closed 6013 solenoid valve is a 2/2 direct-acting plunger solenoid valve. Used directly with brass body. Suitable for neutral gases and liquids such as compressed air, natural gas, water, hydraulic oil and technical vacuum. The modular design allows the sleeve body to be used as a single valve, mount the flange body on a manifold, and integrate the valve seat into a custom terminal body. Custom modifications to the valve body and sealing materials, as well as special electrical connections, provide customers with unparalleled added value in this application.
Features:
• Direct-acting and compact valve up to diameter of DN 6.0;
• Vibration-proof, bolted coil system;
• Increased leak-tightness with welded plunger guide tube.
Main dimension of G1/4'' Burkert Type 6013 2/2 Way Plunger Valve:
Technical parameters of 2/2 Way Direct Acting 6013 Plunger Solenoid Valve:
| Orifice Size (mm) | Port Size (Inch) | Value Water (m³/h) | Opening response times (ms) | Closed response times (ms) |
| 2.0 | G1/8'' | 0.12 | 20 | 30 |
| 2.0 | G1/4'' | 0.12 | 20 | 30 |
| 2.5 | G1/8'' | 0.16 | 20 | 30 |
| 2.5 | G1/4'' | 0.16 | 20 | 30 |
| 3.0 | G1/8'' | 0.23 | 20 | 30 |
| 3.0 | G1/4'' | 0.23 | 20 | 30 |
| 3.0 | G3/8'' | 0.23 | 20 | 30 |
| 4.0 | G1/4'' | 0.30 | 20 | 30 |
| 4.0 | G3/8'' | 0.30 | 20 | 30 |
| 6.0 | G1/4'' | 0.55 | 20 | 30 |
| 6.0 | G3/8'' | 0.55 | 20 | 30 |
Detailed images of Burkert Type 1/4'' Plunger Solenoid Valve For Air Compressor:

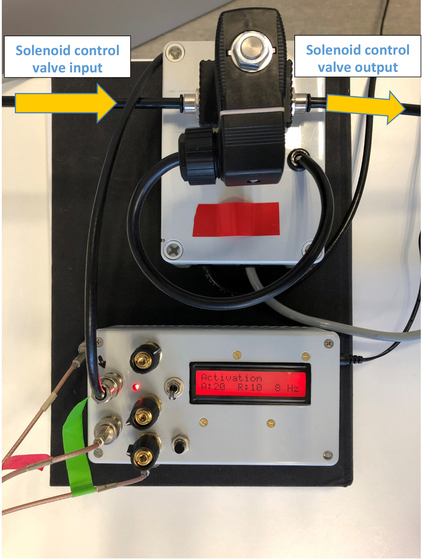

Application of Burkert Type 6013 2/2 Way Plunger Operated Solenoid Valve:

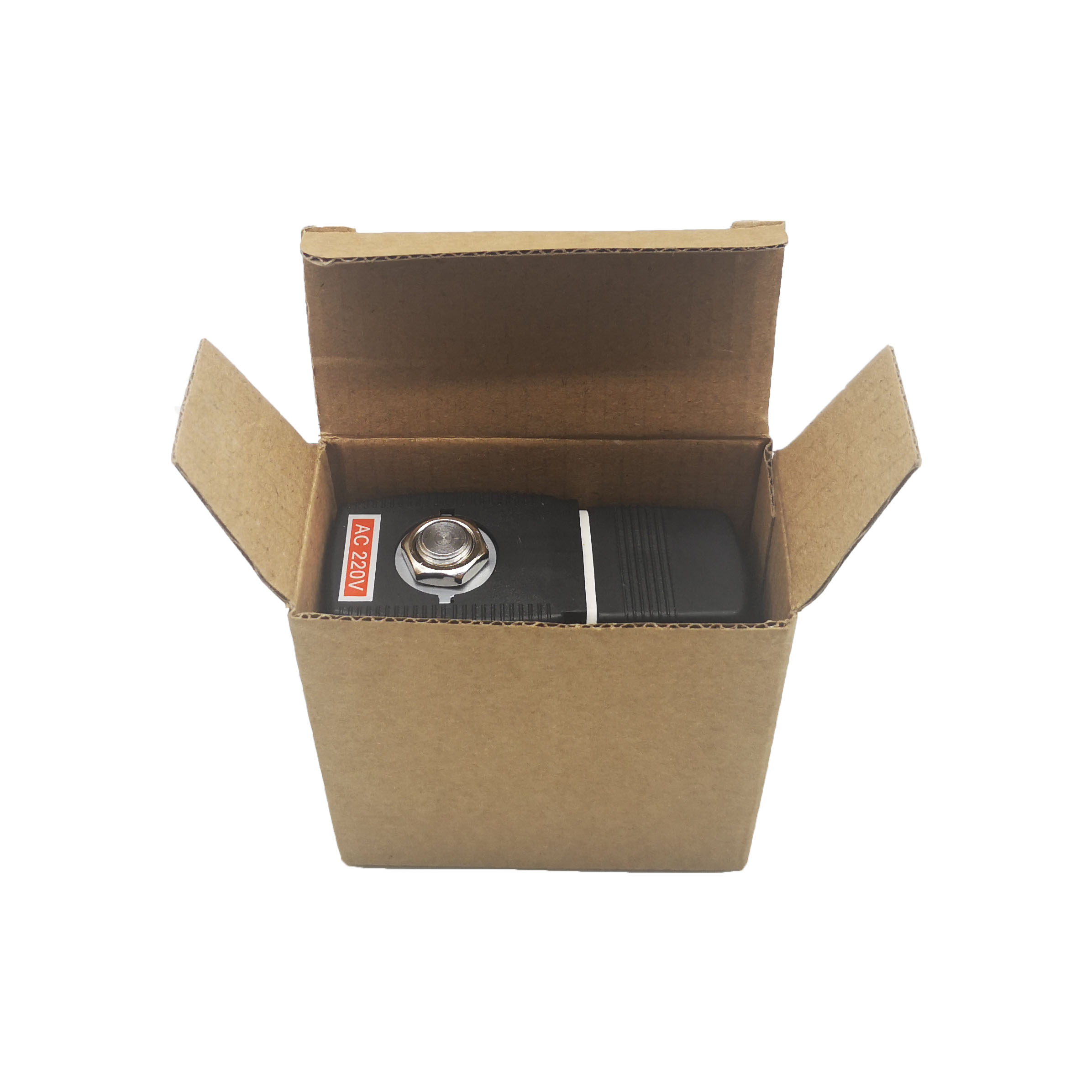

Individual packing of Burkert Type 1/4'' 6013 Direct Acting Solenoid Valve:
Danger of explosion caused by electrostatic charge!
If there is a sudden discharge from electrostatically charged devices or persons, there is a danger of explosion in the Ex area.
• Using suitable measures, ensure that no electrostatic charges can occur in the Ex area.
• Clean the device surface by gently wiping it with a damp or antistatic cloth only.
General Hazardous Situations.
To prevent injuries:
• Ensure that the system cannot be activated unintentionally.
• Installation and maintenance work may be carried out only by authorized technicians with the appropriate tools.
• After an interruption in the power supply or pneumatic supply, ensure that the process is restarted in a defined or controlled manner.
• The device may be operated only when in perfect condition and in consideration of the operating instructions.
• The general rules of technology must be observed for application planning and operation of the device.
Danger – high pressure!
When reaching into the system, there is an acute risk of injury.
• Before dismounting pneumatic lines and valves, turn off the pressure and vent the lines.
• During the installation, make certain the flow direction is correct.
• Observe applicable accident prevention and safety regulations for pressurized devices.
