3/4'' C113443 1'' C113444 Diaphragm For ASCO Valve

$4 - 5 /Set/Sets

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air,Express

Port:

Ningbo,Shanghai,Guangzhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: C113444

Brand: Brando

Origin: China Ningbo

Certification: CE

Product Name: Pulse Valve Diaphragm

1 Set: 1pc Diaphragm, 1pc Spring

Diaphragm Material: Tpe, Nbr, Fkm

Fitted Valve Port: 3/4'', 1''

Fitted Valve Model: Scg353a043, Scg353a044, G353a041, G353a042

Packaging: Individual Plastic Bag

Supply Ability & Additional Information

Packaging: Plastic bag, Box, Carton, Pallet

Productivity: 100000 sets per month

Transportation: Ocean,Land,Air,Express

Place of Origin: China Ningbo

Supply Ability: 20000 sets per week

Certificate: CE

Port: Ningbo,Shanghai,Guangzhou

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Plastic bag, Box, Carton, Pallet

3/4'' C113443 1'' C113444 Diaphragm For ASCO Valve

Main Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change
fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction.
This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or
require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force
* No Friction * Wide Pressure Ranges * High Strength
* Low Cost * Simple Design * Versatility

5. EPDM, FKM all available.

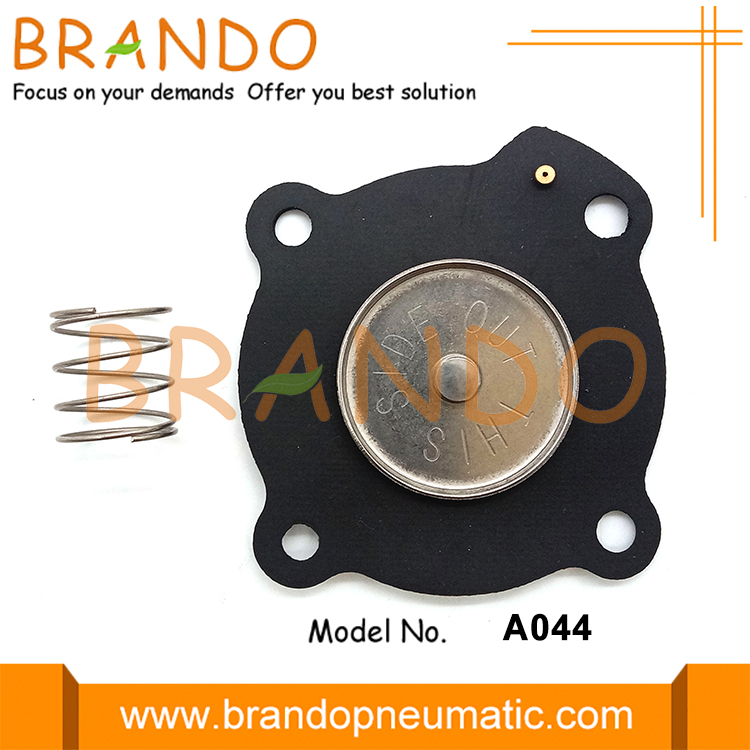

Main Dimension of C113443, C113444 Pulse Valve Diaphragm:

A044

Ordering Code of Diaphragm For ASCO Pulse Valve:

Valve Port Size	Pulse Valve Model	Diaphragm Model	Diaphragm Material (FKM is also available)
3/4''	SCG353A043	C113444	TPE (White), NBR (Black)
1''	SCG353A044
3/4''	SCG353-052
1''	SCG353-053
3/4''	SGG353A043
1''	SGG353A044
3/4''	SGG353-052
1''	SGG353-053
1 1/2''	SCG353A047	C113827	NBR
	SGG353A065
2''	SCG353A050	C113685, C113686	NBR
2 1/2''	SCG353A051
3''	SCXE353.060	C123432, C123433	NBR
	SCG353D060
3/4''	G3530A41	C113443	NBR
1''	G353A042
3/4''	G353-055
1''	G353-056
1 1/2''	G353A045	C113825	NBR
	G353-066
1 1/2''	G353A046	C113826	NBR
	G353A063
2''	G353A048	C113684	NBR
2 1/2''	G353A049

Pictures of Pulse Valve Membrane Production:
