ASCO Type C113685 Diaphragm Repair Kit SCG353A050 SCG353A051

$12 - 13 /Set/Sets

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CFR,CIF,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air,Express

Port:

Ningbo,Shanghai,Guangzhou

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: C113685

Brand: Brando

Origin: China Ningbo

Certification: CE

Product Name: Pulse Valve Diaphragm

Diaphragm Material: Nbr, Fkm

Packaging: Individual Plastic Bag

1 Set: 1pc Big Diaphragm, 1pc, Small Diaphragm, 1pc Spring

Fitted Valve Port: 2'', 2.5''

Fitted Valve Model: Scg353a050, Scg353a051

Center Distance: 145.5mm

Diaphragm OD: 145mm

Mounting Hole Size: 8.5mm

Bleed Hole: 1

Supply Ability & Additional Information

Packaging: Plastic bag, Box, Carton, Pallet

Productivity: 100000 sets per month

Transportation: Ocean,Land,Air,Express

Place of Origin: China Ningbo

Supply Ability: 20000 sets per week

Certificate: CE

Port: Ningbo,Shanghai,Guangzhou

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: Plastic bag, Box, Carton, Pallet

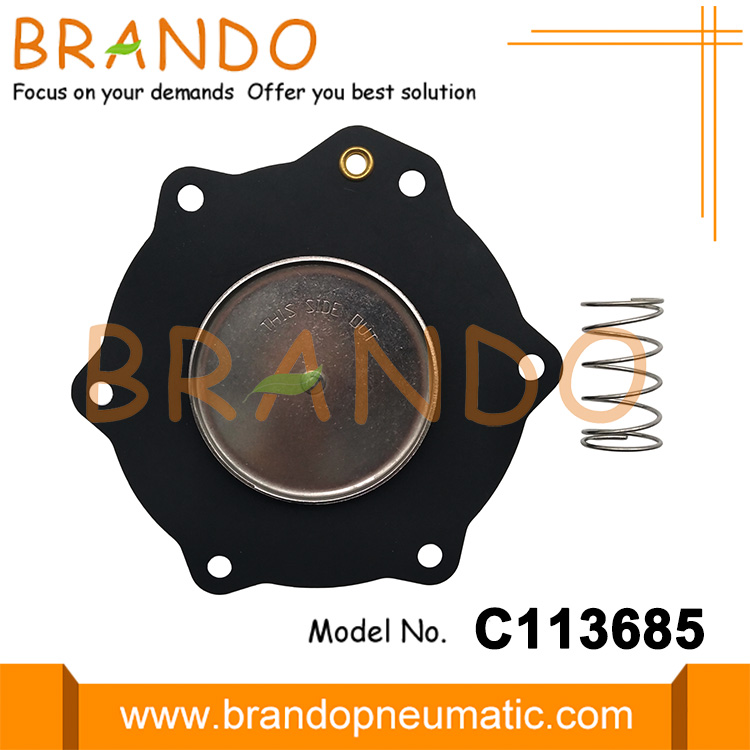

ASCO Type C113685 Diaphragm Repair Kit SCG353A050 SCG353A051

The following is C113685 / C113686 diaphragm repair kit for ASCO 2'' SCG353A050, 2 1/2'' SCG353A051 diaphragm valves. The repair kit comes with 1 nitrile main diaphragm, 1 secondary diaphragm and 1 stainless steel spring to help replace SCG353A050, SCG353A051 valves.
C113685, C113686, C113-685, C113-686 Diaphragm (Membrane) for ASCO Pulse Valve SCG353A050, SCG353A051; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

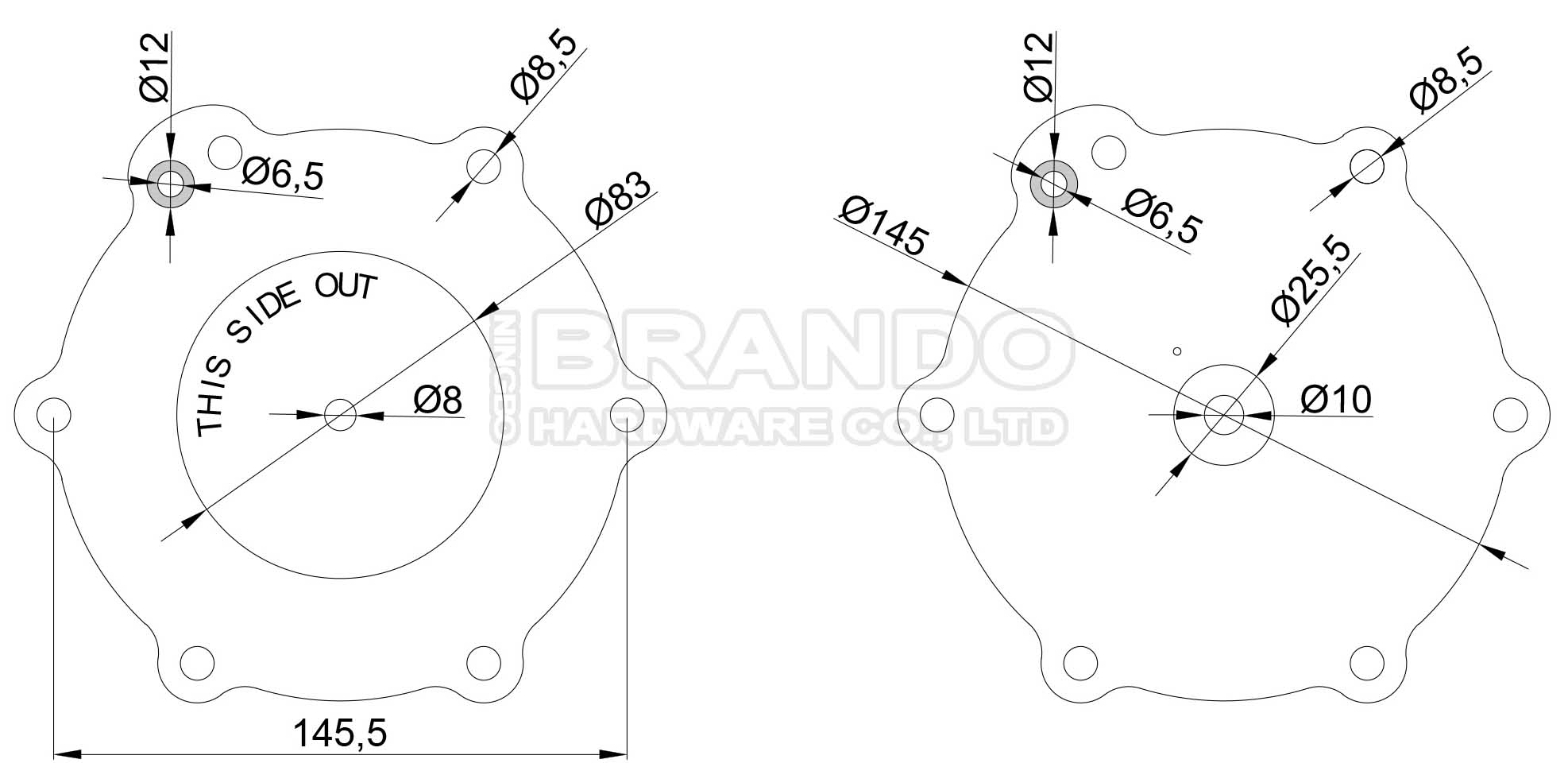

Main Dimension of C113685, C113686 Pulse Valve Diaphragm:

A051

Ordering Code of Diaphragm For ASCO Pulse Valve:

Valve Port Size	Pulse Valve Model	Diaphragm Model	Diaphragm Material (FKM is also available)
3/4''	SCG353A043	C113444	TPE (White), NBR (Black)
1''	SCG353A044
3/4''	SCG353-052
1''	SCG353-053
3/4''	SGG353A043
1''	SGG353A044
3/4''	SGG353-052
1''	SGG353-053
1 1/2''	SCG353A047	C113827	NBR
	SGG353A065
2''	SCG353A050	C113685, C113686	NBR
2 1/2''	SCG353A051
3''	SCXE353.060	C123432, C123433	NBR
	SCG353D060
3/4''	G3530A41	C113443	NBR
1''	G353A042
3/4''	G353-055
1''	G353-056
1 1/2''	G353A045	C113825	NBR
	G353-066
1 1/2''	G353A046	C113826	NBR
	G353A063
2''	G353A048	C113684	NBR
2 1/2''	G353A049
